Grain Size Analysis for Garland Construction Sites

Garland sits on the Blackland Prairie, where fat clays dominate the near-surface geology. These expansive soils hold moisture aggressively, and their behavior changes dramatically with particle size distribution. A routine test pit excavation often reveals a stark transition from dark organic clay to the underlying Eagle Ford Shale. Without knowing the exact gradation curve—from coarse gravel down to colloidal fines—you can't predict drainage rates, frost susceptibility, or shrink-swell potential. The grain size analysis, combining mechanical sieving and hydrometer sedimentation, gives us that full picture. It classifies the material precisely under ASTM D2487 so the structural engineer can specify the right footing depth and the earthwork contractor can adjust compaction targets. In a city that averages 40 inches of rain annually, getting the fines content wrong leads to ponding subgrades and costly delays.

A reliable gradation curve doesn't just classify soil—it predicts permeability, frost action, and compaction effort before the first bucket of fill hits the site.

Methodology and scope

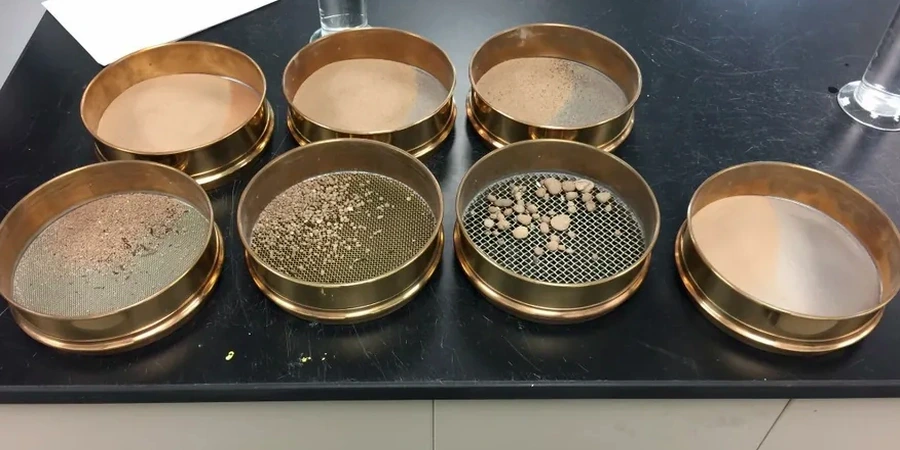

Garland's population now exceeds 240,000, and the ongoing development along the President George Bush Turnpike corridor pushes construction into areas with highly variable alluvial deposits. These pockets of silty sand interbedded with clay lenses require a dual approach: the sieve analysis separates the coarse fraction retained on the No. 200 sieve, while the hydrometer test quantifies the silt and clay percentages in suspension. We run the full procedure—ASTM D422 for particle-size analysis and ASTM D1140 for percent finer than No. 200—to populate the complete gradation curve. For pavement subgrades, this data directly feeds into the CBR design process, correlating soil classification with bearing strength. It also flags gap-graded materials that compact unpredictably. Our lab in the Dallas metro area processes samples at standard curing temperatures that mirror Garland's summer heat, avoiding the thermal drift that can skew hydrometer readings in unconditioned spaces. The result is a defensible soil classification, whether the material turns out to be a well-graded sand (SW) or a high-plasticity clay (CH).

Local considerations

The hydrometer test is tedious, and rushing it produces garbage data. We pull a 152H hydrometer from the sedimentation cylinder at logarithmically spaced intervals—2, 5, 15, 30, 60, 120 minutes, then 4, 8, 24, and 48 hours—while a companion cylinder tracks temperature corrections. In Garland, where tap water can carry dissolved solids above 500 ppm, we use deionized water to prevent flocculation of the clay fraction. The real risk isn't a coarse error; it's a systematic bias from inadequate dispersion or a poorly calibrated meniscus correction. If the hydrometer overestimates the silt fraction, the lab report calls it a low-plasticity silt (ML) when it's actually a fat clay (CH). That misclassification cascades into undersized retaining walls and foundation heave that insurance won't cover. We run duplicate tests on every fifth sample as a precision check, catching drift before the report leaves the lab.

Reference standards

ASTM D2487 – Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System), ASTM D6913 – Standard Test Methods for Particle-Size Distribution (Gradation) of Soils Using Sieve Analysis, ASTM D7928 – Standard Test Method for Particle-Size Distribution (Gradation) of Fine-Grained Soils Using the Sedimentation (Hydrometer) Analysis, AASHTO T 88 – Standard Method of Test for Particle Size Analysis of Soils

Technical data

Parameter	Typical value
Test Method	ASTM D422 (withdrawn, but still widely referenced) paired with ASTM D6913 for sieving and ASTM D7928 for hydrometer analysis
Sieve Range	3 inches (75 mm) down to No. 200 (75 µm)
Hydrometer Range	75 µm down to approximately 1 µm (colloidal clay fraction)
Sample Mass	500 g for predominantly sandy soils; 200 g for fine-grained soils
Dispersing Agent	Sodium hexametaphosphate solution, standardized per ASTM E100
Reporting	Gradation curve, coefficient of uniformity (Cu), coefficient of curvature (Cc), and USCS classification
Typical Turnaround	3 to 4 business days from sample receipt

Frequently asked questions

How much does grain size analysis cost for a Garland project?

A standard sieve plus hydrometer test typically falls between US$110 and US$200 per sample, depending on whether we run the full gradation or just the fines fraction. Expedited turnaround adds a small surcharge.

How deep do you need to sample for representative material?

It depends on the formation. For Garland's residual clays, we typically sample at footing depth—about 3 to 5 feet—and again at any stratum change. If you encounter the Eagle Ford Shale, we take a bulk sample of the weathered zone because its gradation controls drainage at the base of the excavation.

Why do I need a hydrometer test if I already have the sieve results?

The sieve stops at the No. 200 mesh. Everything passing that sieve—silt and clay—behaves as a single mass on the sieve pan. The hydrometer separates them by sedimentation rate. That distinction determines whether your soil will drain freely or hold water and swell. For Garland's expansive clays, skipping the hydrometer means you're guessing on the most critical fraction.

How do you handle organic soils or high-plasticity clays?

We dry the sample at 60 degrees Celsius to preserve the clay structure, then soak it with a sodium hexametaphosphate dispersant. For organic clays—common near Lake Ray Hubbard—we may oxidize the organics with hydrogen peroxide before testing to avoid skewed hydrometer readings from floating organic particles.

What's the typical turnaround for testing during active earthwork?

Standard turnaround is three to four business days. If you're on a tight grading schedule and need results to adjust compaction targets, we can expedite to 24 hours for a sieve-only analysis or 48 hours for the full curve with hydrometer.
