Pile Foundation Design in Garland, TX: Getting It Right the First Time

Evidence-based design. Reliable delivery.

LEARN MORE

The most expensive mistake a developer makes in Garland is guessing at pile depth. North Texas clay doesn't forgive assumptions. You drive piles 20 feet into stiff soil only to find active moisture fluctuation at 22 feet destroying your slab within three seasons. The real problem isn't the clay itself—it's the refusal to correlate a basic SPT log with a proper triaxial shear test before finalizing the foundation plan. Garland sits on the Eagle Ford Group overlain by Quaternary alluvium, and the transition zone between weathered shale and expansive clay demands a design methodology that accounts for both skin friction loss during summer drought and excess pore pressure buildup after a 100-year storm event. We provide pile foundation design that starts with a defensible geotechnical model, not a generic presumptive bearing value pulled from the county soil survey. That means fewer change orders, shorter punch lists, and a structural slab that stays level through the third August dry spell.

Pile design in Garland fails when the geotechnical baseline ignores seasonal moisture cycling in the upper 25 feet of the Eagle Ford weathered zone.

Our service areas

Methodology and scope

Drive through Firewheel Town Center and then head south toward the Duck Creek floodplain. The difference in foundation performance is stark. The retail pads near the mall sit on relatively shallow weathered shale where end-bearing piles socketed into the Eagle Ford achieve refusal at manageable depths. Move a mile south into the alluvial terraces along Duck Creek, and suddenly you're dealing with 15 to 30 feet of soft fat clay overlying a gravel lens that misleads standard penetration testing. A CPT test across these two Garland neighborhoods reveals pore pressure dissipation rates that differ by an order of magnitude, directly dictating whether the pile design needs a static analysis approach or a wave equation model for driveability. Our design process integrates site-specific stratigraphy with structural loading requirements to deliver pile lengths and sections that work for the actual soil column, not the idealized one. Key design considerations include downdrag potential from consolidating fill, lateral capacity under wind loads, and group efficiency factors for pile caps with spacing under three diameters. We also specify pile load testing criteria that verify both geotechnical and structural capacity before production piles are installed, eliminating the risk of a mischaracterized bearing layer.

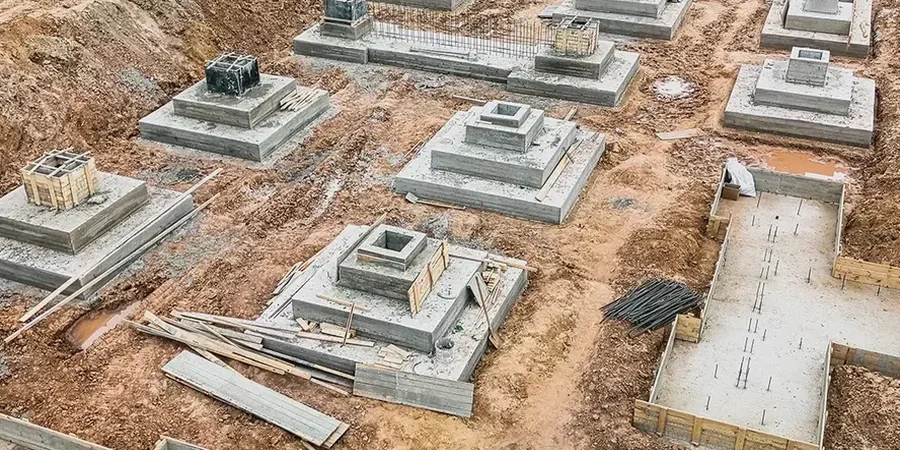

Pile Foundation Design in Garland, TX: Getting It Right the First Time
Technical reference — Garland

Local considerations

Garland straddles a Site Class D to E boundary according to the USGS shear wave velocity profiles for Dallas County. The Quaternary alluvium in the southern half of the city amplifies short-period ground motion, meaning a pile foundation designed only for vertical bearing can fail in flexure at the pile cap connection during a design-level seismic event. The 2021 IBC maps show a spectral response acceleration at 0.2 seconds (Ss) around 0.35g for this area, but local site effects can push that higher in pockets of deep clay. A pile group that ignores kinematic soil-structure interaction will concentrate moment at the head of the corner piles, initiating a brittle failure in the pile-to-cap connection. The secondary risk is downdrag. When fill material or desiccated clay reconsolidates after wetting, it grips the pile shaft and adds a sustained compressive load that wasn't in the original structural calculations. We mitigate this by specifying a bitumen slip layer or by isolating the upper shaft with a permanent casing through the active zone, extending several feet below the depth of seasonal moisture variation.

Need a geotechnical assessment?

Reply within 24h.

Email: [email protected]

Reference standards

ASCE 7-22 (Minimum Design Loads for Buildings and Other Structures), IBC 2021 (International Building Code, Chapter 18), ASTM D1586 (Standard Test Method for Standard Penetration Test), ASTM D5778 (Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing), ACI 543R (Guide to Design, Manufacture, and Installation of Concrete Piles), AASHTO LRFD Bridge Design Specifications (10th Edition, Section 10)

Technical data

ParameterTypical value
Design StandardIBC 2021 / ASCE 7-22
Soil Investigation MethodSPT (ASTM D1586) + CPTu (ASTM D5778)
Typical Pile TypesDrilled shafts, driven H-piles, helical piles
Key Design Load CaseDowndrag + seismic (Site Class D/E transition)
Bearing StratumEagle Ford Shale (weathered to competent)
Lateral Analysis Methodp-y curves (LPILE) or strain wedge model
QA/QC ProtocolPDA testing, cross-hole sonic logging (CSL)
DeliverableSigned and sealed foundation design report

Frequently asked questions

What is the typical depth for piles in Garland?

There is no single typical depth. In the northern part of the city near the Eagle Ford outcrop, drilled shafts can reach competent shale at 15 to 25 feet. In the Duck Creek and Rowlett Creek floodplains, piles often extend to 40 or 50 feet to bypass soft alluvial clays and seat into the underlying shale. The depth is always determined by a site-specific boring log and CPTu profile, not by a regional rule of thumb.

How much does a pile foundation design cost for a Garland project?

The pile foundation design package, including the necessary geotechnical investigation and the signed, sealed design report, ranges from US$1,660 to US$6,780 depending on the number of borings required and the complexity of the structural load cases. A small commercial lot with one boring and a straightforward axial load path falls at the lower end. A multi-story structure requiring lateral analysis, group effects, and a load test program will be at the upper end of that range.

Can you design helical piles for a residential addition in Garland's clay?

Yes, helical piles are often a practical solution for residential additions where access limits the use of large drilling equipment. The critical step is confirming the torque-to-capacity correlation for the specific clay unit at the site. We require at least one helical pile load test to calibrate the installation torque against the required design load, per ICC-ES AC358 criteria, before the production piles are installed.
